Multilayer Ceramic Capacitor (MLCC) with 12pF capacitance and 250V DC rating. Features C0G dielectric with 5% tolerance, operating from -55°C to 125°C. Packaged in an 0603 (1608 metric) surface mount case with SMD/SMT termination. This component offers ultra-low ESR and is supplied on tape and reel.
Package0603
Capacitance12pF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
Johanson 251R14S120JV4T technical specifications.
General
Capacitance
12pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.81mm
Dielectric
C0G
Height
0.89mm
Length
1.57mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
S
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Width
0.81mm
Compliance
RoHS
Compliant
Datasheet
Johanson 251R14S120JV4T Datasheet
Download the complete datasheet for Johanson 251R14S120JV4T to view detailed technical specifications.
No datasheet is available for this part.

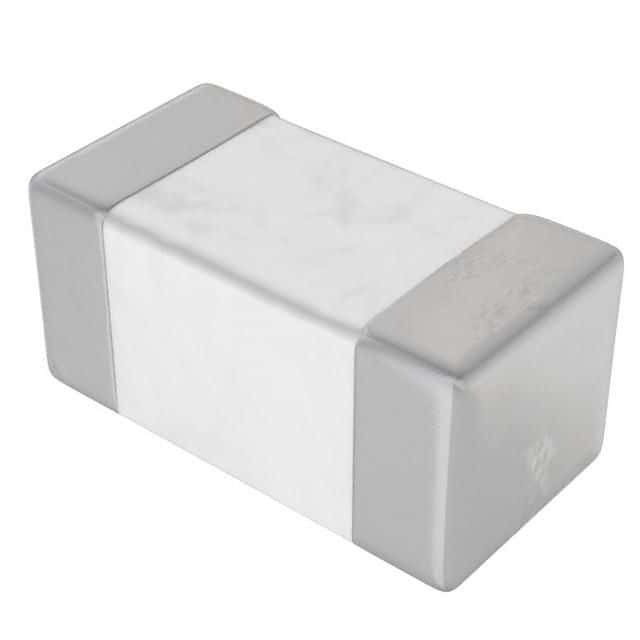

Product Images
