Multilayer Ceramic Capacitor (MLCC) with 10pF capacitance and 50V DC rating. Features C0G dielectric for stable performance across a wide temperature range (-55°C to 125°C) and a tight 2% tolerance. Packaged in an 0402 (1005 metric) surface-mount case with ultra-low ESR, supplied on tape and reel. RoHS compliant.
Package0402
Capacitance10pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Johanson 500R07S100GV4T technical specifications.
General
Capacitance
10pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.51mm
Dielectric
C0G
Dielectric Material
Ceramic
Height
0.64mm
Length
1.02mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
10000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
S
Termination
SMD/SMT
Tolerance
2%
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.51mm
Compliance
RoHS
Compliant
Datasheet
Johanson 500R07S100GV4T Datasheet
Download the complete datasheet for Johanson 500R07S100GV4T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

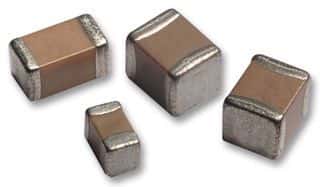

Product Images
