Multilayer Ceramic Capacitor (MLCC) with 1.2pF capacitance and 50V DC rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Packaged in a compact 0402 (1005 metric) SMD/SMT case with a flat construction. Ultra-low ESR and RoHS compliant, supplied on tape and reel.
Package0402
Capacitance1.2pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Johanson 500R07S1R2BV4T technical specifications.
General
Capacitance
1.2pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.51mm
Dielectric
C0G
Dielectric Material
Ceramic
Height
0.64mm
Length
1.02mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Package Quantity
10000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
S
Termination
SMD/SMT
Thickness
0.024inch
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.51mm
Compliance
RoHS
Compliant
Datasheet
Johanson 500R07S1R2BV4T Datasheet
Download the complete datasheet for Johanson 500R07S1R2BV4T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

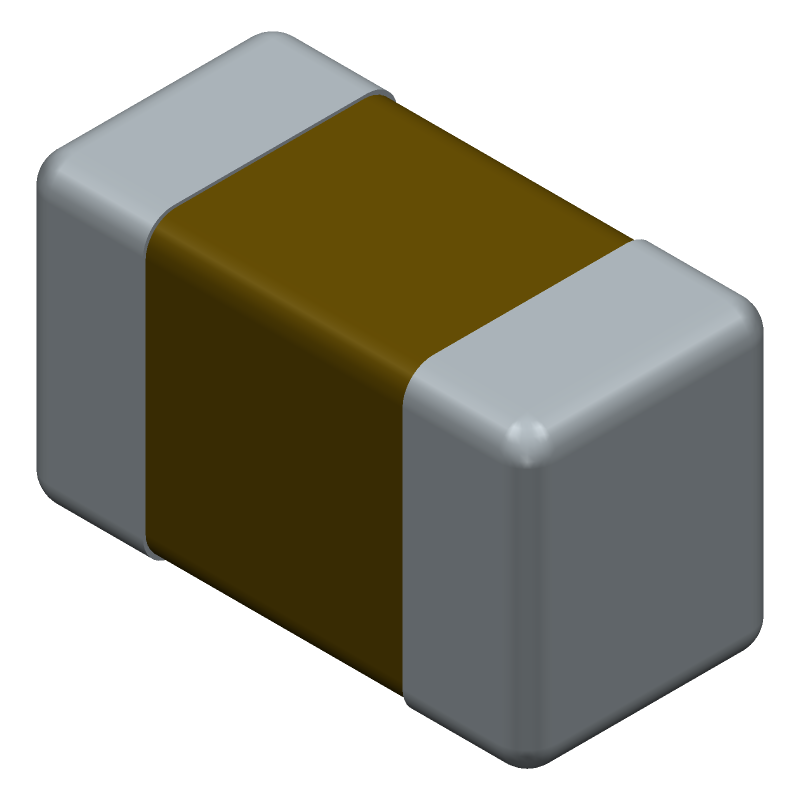

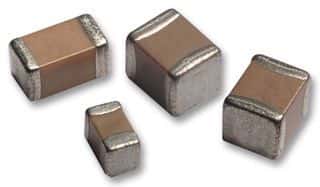

Product Images
