Surface mount aluminum electrolytic capacitor featuring 47µF capacitance and a 12.5V DC rated voltage. This polarized capacitor offers 20% tolerance, 25mΩ ESR, and a ripple current rating of 3.2A. Operating across a wide temperature range from -55°C to 125°C, it is housed in a 2917 (7343 metric) case with dimensions of 7.3mm length, 4.3mm width, and 3.1mm height. The component is RoHS compliant and supplied in tape and reel packaging.
Package2917
Capacitance47uF
Resistance0.025R
Voltage Rating12.5V
Quick Jump:
Technical Specifications
Kemet A700D476M12RATE025 technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Depth | 4.3mm |
| ESR (Equivalent Series Resistance) | 25mR |
| Height | 3.1mm |
| Leakage Current | 55.4uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 0.025R |
| Ripple Current | 3.2A |
| RoHS Compliant | Yes |
| Series | AO-Cap A700 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 12.5V |
| DC Rated Voltage | 12.5V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet A700D476M12RATE025 Datasheet
Download the complete datasheet for Kemet A700D476M12RATE025 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

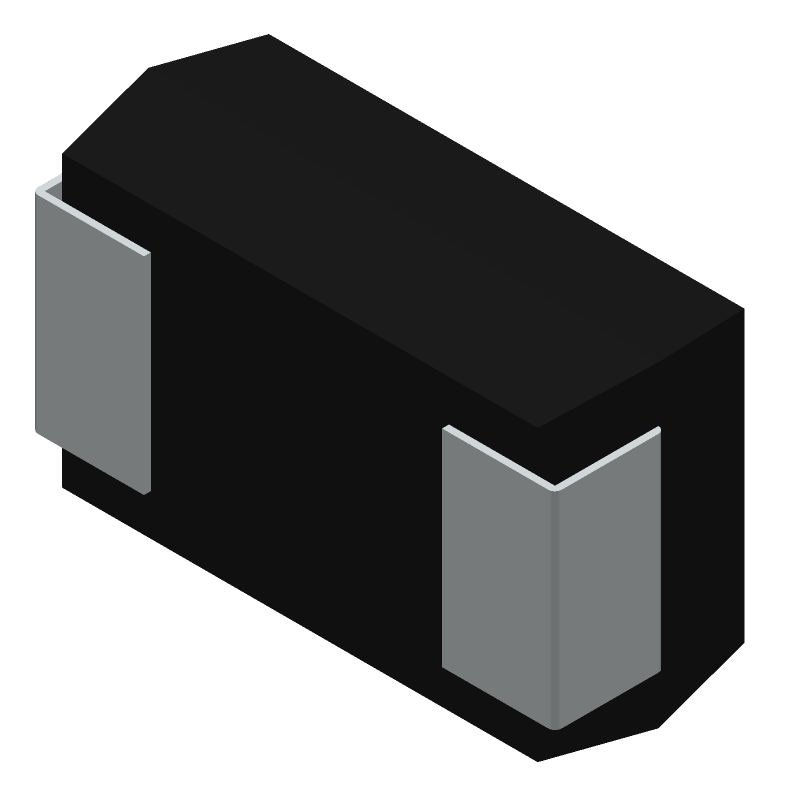

Product Images
