Multilayer Ceramic Capacitor (MLCC) with 1.5nF capacitance and 50V voltage rating. Features X7R dielectric for stable performance across a -55°C to 125°C temperature range, with a 10% tolerance. This 0402 (1005 metric) surface mount component offers a 2.5% dissipation factor and is supplied on tape and reel.
Package0402
Voltage50V
Capacitance1.5nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0402C152K5RACTU technical specifications.
General
Capacitance
1.5nF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.5mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
2.5%
Height
0.5mm
Lead Free
Lead Free
Lead Pitch
0.3mm
Length
1mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C0402C
Termination
SMD/SMT
Thickness
0.022inch
Tolerance
10%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Kemet C0402C152K5RACTU Datasheet
Download the complete datasheet for Kemet C0402C152K5RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

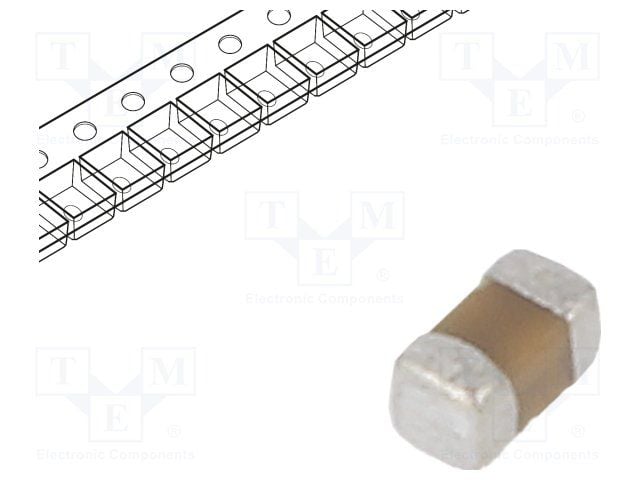

Product Images
