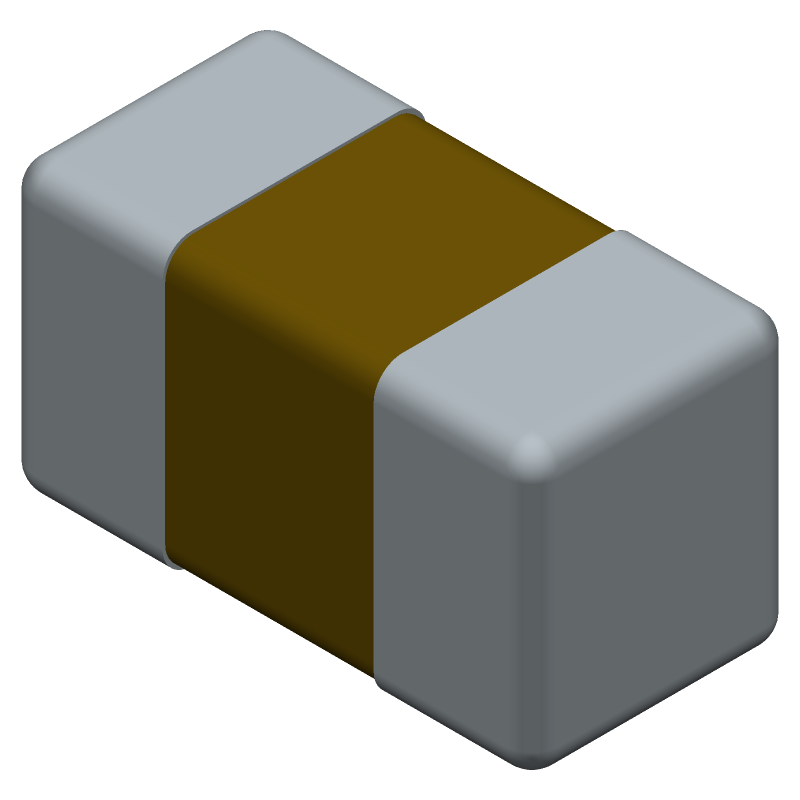

Multilayer ceramic capacitor with 3.9nF capacitance and 50V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. 10% tolerance ensures precise capacitance values. Surface mountable in a compact 0402 (1005 metric) case code. RoHS compliant and lead-free construction.
Package0402
Voltage50V
Capacitance3.9nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0402C392K5RACTU technical specifications.
General
Capacitance
3.9nF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.5mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
2.5%
Height
0.5mm
Lead Free
Lead Free
Lead Pitch
0.3mm
Length
1mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
10000
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C0402C
Termination
SMD/SMT
Tolerance
10%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.5mm
Compliance
RoHS
Compliant
