Multilayer ceramic capacitor with 4.7nF capacitance and 10V DC rating. Features X7R dielectric, 10% tolerance, and 5% dissipation factor. Surface mountable in a 0402 (1005 metric) case code, measuring 1mm x 0.5mm x 0.5mm. Operating temperature range from -55°C to 125°C. Packaged in tape and reel.
Package0402
Capacitance4.7nF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0402C472K8RACTU technical specifications.
General
| Capacitance | 4.7nF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Depth | 0.5mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 5% |
| Height | 0.5mm |
| Lead Pitch | 0.3mm |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.022inch |
| Tolerance | 10% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0402C472K8RACTU Datasheet
Download the complete datasheet for Kemet C0402C472K8RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

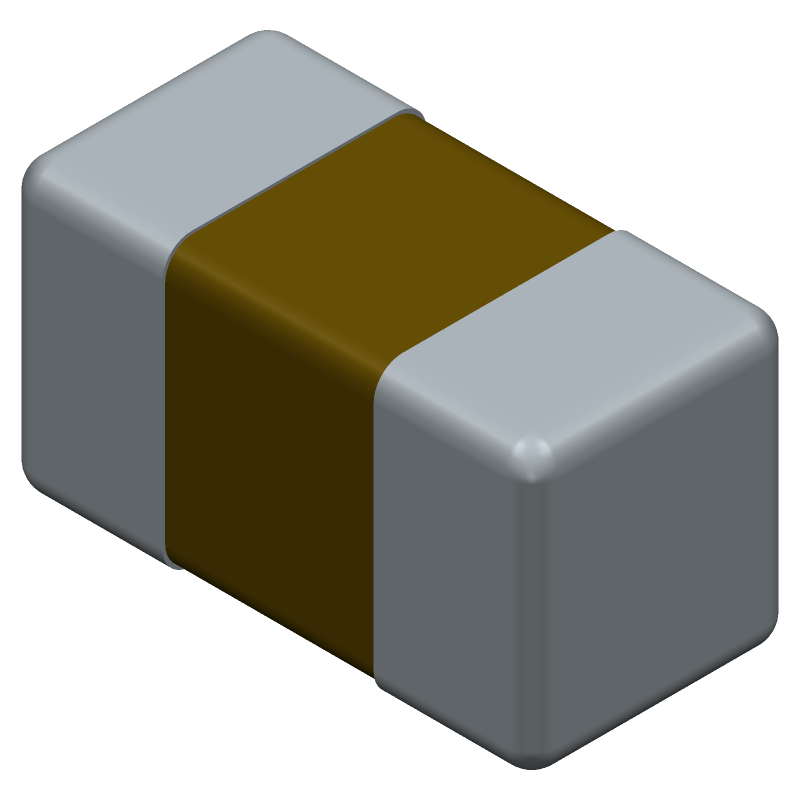

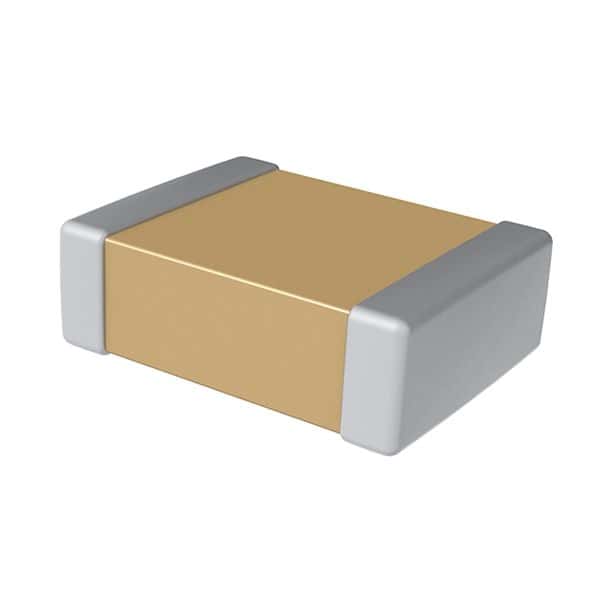

Product Images
