Multilayer Ceramic Capacitor (MLCC) with 8.2pF capacitance and 50V DC rated voltage. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Surface mountable in a 0402 (1005 metric) case code, this component offers extreme low ESR and a dissipation factor of 0.1%. RoHS compliant and lead-free, it is supplied on tape and reel.
Package0402
Voltage50V
Capacitance8.2pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0402C829C5GACTU technical specifications.
General
Capacitance
8.2pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.5mm
Dielectric
C0G
Dielectric Material
Ceramic
Dissipation Factor
0.1%
Height
0.5mm
Lead Free
Lead Free
Lead Pitch
0.3mm
Length
1mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.022inch
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Kemet C0402C829C5GACTU Datasheet
Download the complete datasheet for Kemet C0402C829C5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

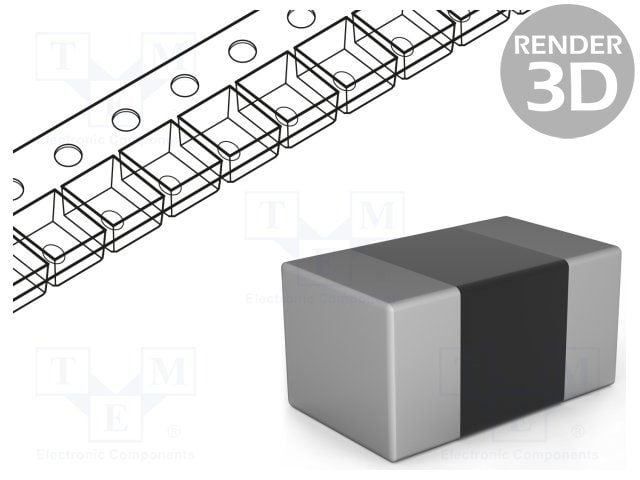

Product Images
