General purpose ceramic chip capacitor, 100pF capacitance, 50V DC rated voltage, and ±10% tolerance. Features X7R dielectric material in a 0603 (1608 metric) surface mount package. Operates across a temperature range of -55°C to +125°C. Packaged on a 7" reel with 4000 units.
Package0603
Capacitance100pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0603C101K5RACTU technical specifications.
General
| Capacitance | 100pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Comm X7R |
| Termination | SMD/SMT |
| Thickness | 0.034inch |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0603C101K5RACTU Datasheet
Download the complete datasheet for Kemet C0603C101K5RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

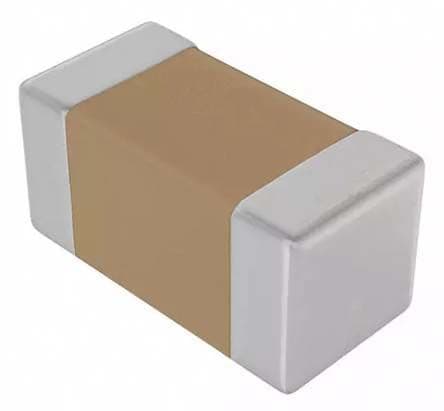

Product Images
