Surface mount ceramic capacitor with 27pF capacitance and 50V voltage rating. Features C0G dielectric for stable performance across a -55°C to +125°C operating temperature range. Encased in a 0603 (1608 metric) package with 5% tolerance and a dissipation factor of 0.1%. Lead-free and RoHS compliant, supplied on a 7" reel.
Package0603
Voltage50V
Capacitance27pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0603C270J5GACTU technical specifications.
General
Capacitance
27pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Contact Material
Tin
Depth
0.8mm
Dielectric
C0G
Dielectric Material
Ceramic
Dissipation Factor
0.1%
Height
0.8mm
Lead Free
Lead Free
Lead Pitch
0.7mm
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.034inch
Tolerance
5%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet C0603C270J5GACTU Datasheet
Download the complete datasheet for Kemet C0603C270J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

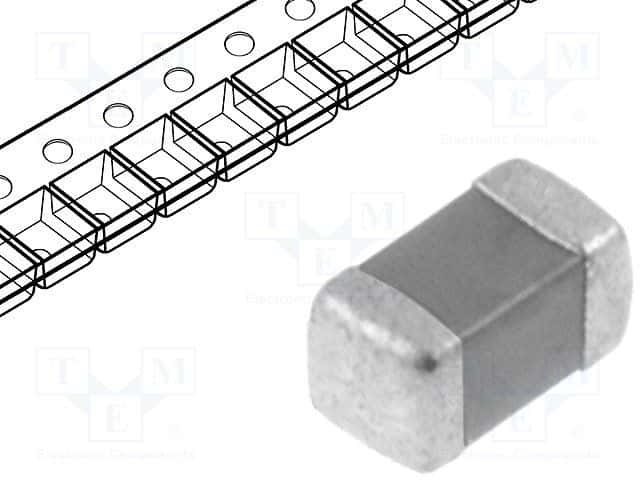

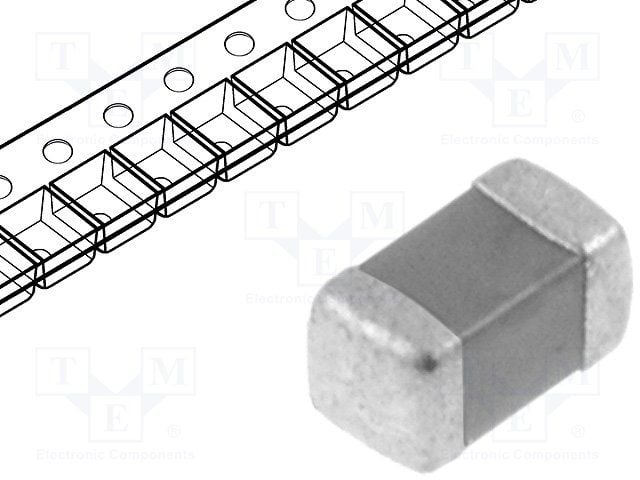

Product Images
