Multilayer Ceramic Capacitor (MLCC) with 33nF capacitance and 100V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C temperature range, with a 10% tolerance. Surface mountable in a 0603 (1608 metric) case code, this RoHS compliant component is supplied on tape and reel.
Package0603
Voltage100V
Capacitance33nF
Voltage Rating100V
Quick Jump:
Technical Specifications
Kemet C0603C333K1RACTU technical specifications.
General
Capacitance
33nF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
2.5%
Height
0.8mm
Lead Free
Lead Free
Lead Pitch
0.7mm
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.034inch
Tolerance
10%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Kemet C0603C333K1RACTU Datasheet
Download the complete datasheet for Kemet C0603C333K1RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

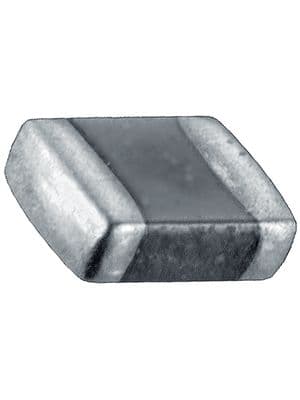

Product Images
