Multilayer Ceramic Capacitor (MLCC) with 470pF capacitance and 50V voltage rating. Features NP0 dielectric for stable performance, 5% tolerance, and a 0603 surface mount package. Operating temperature range from -55°C to 125°C, with low dissipation factor and extreme low ESR. Packaged in tape and reel for automated assembly.
Package0603
Voltage50V
Capacitance470pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0603C471J5GACTU technical specifications.
General
Capacitance
470pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
NP0
Dielectric Material
Ceramic
Dissipation Factor
0.1%
Height
0.8mm
Lead Free
Lead Free
Lead Pitch
0.7mm
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SMD Comm C0G
Termination
SMD/SMT
Thickness
0.034inch
Tolerance
5%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet C0603C471J5GACTU Datasheet
Download the complete datasheet for Kemet C0603C471J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

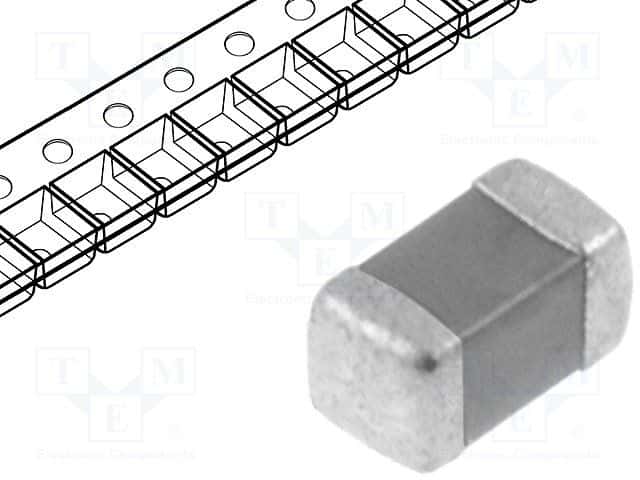

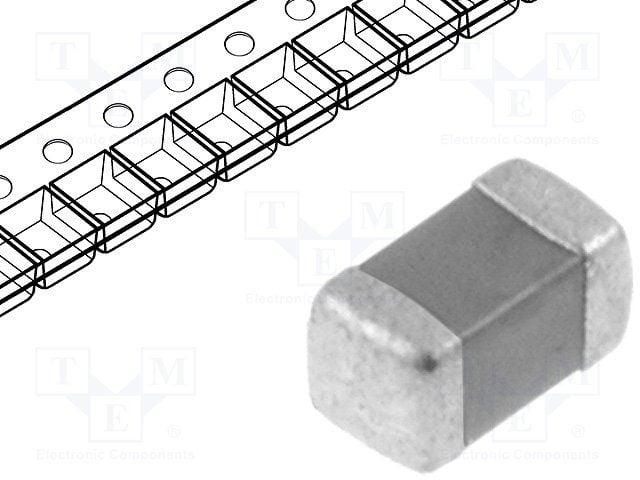

Product Images
