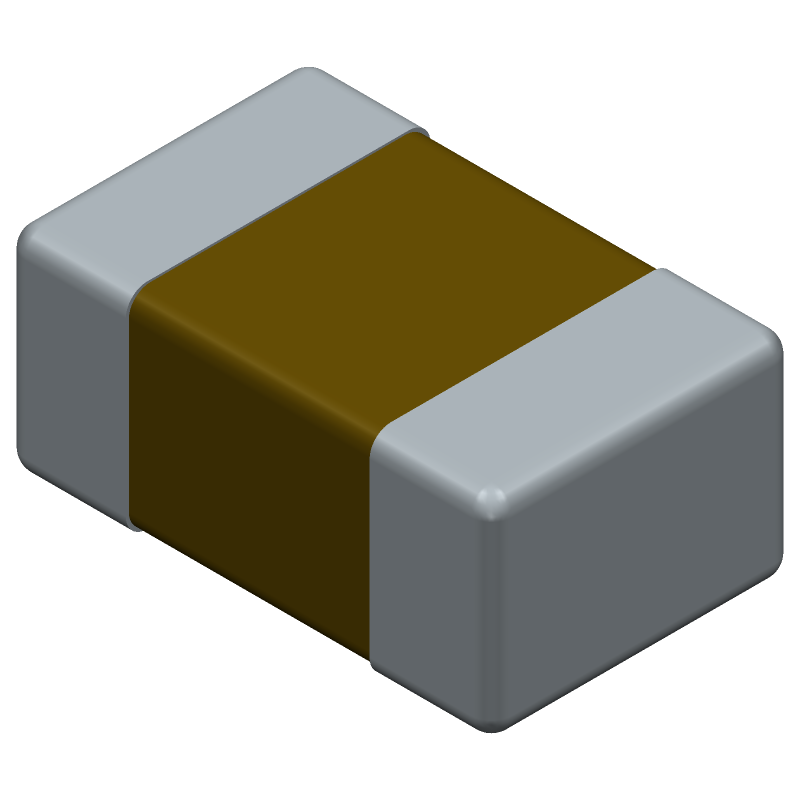

Multilayer Ceramic Capacitor (MLCC) with 10pF capacitance and 16V DC rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. This 0805 (2012 metric) surface mount component offers 20% tolerance and extreme low ESR. Packaged on tape and reel, it is RoHS compliant with tin, matte contact plating.
Package0805
Capacitance10pF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0805C100M4GACTU technical specifications.
General
Capacitance
10pF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Contact Plating
Tin, Matte
Dielectric
C0G
Dielectric Material
Ceramic
Dissipation Factor
0.1%
Height
0.78mm
Lead Free
Lead Free
Lead Pitch
0.75mm
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
Kemet C0805C100M4GACTU Datasheet
Download the complete datasheet for Kemet C0805C100M4GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
