General purpose ceramic chip capacitor, 1uF capacitance, 16V voltage rating, and 10% tolerance. Features X7R dielectric in an 0805 (2012) surface mount package with a temperature range of -55°C to +125°C. RoHS compliant and lead-free.
Package0805
Voltage16V
Capacitance1uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kemet C0805C105K4RACTU technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Comm X7R |
| Termination | SMD/SMT |
| Thickness | 0.039inch |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| Voltage Rating (AC) | 16V |
| DC Rated Voltage | 16V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0805C105K4RACTU Datasheet
Download the complete datasheet for Kemet C0805C105K4RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

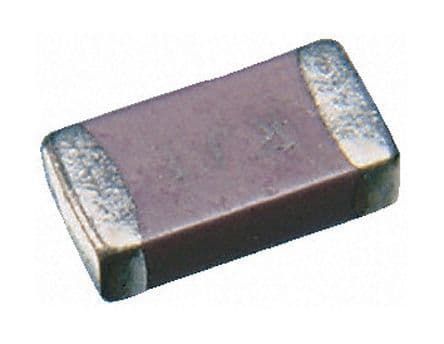

Product Images
