General purpose ceramic chip capacitor, 15pF capacitance, 50V voltage rating, and ±5% tolerance. Features C0G dielectric for excellent temperature stability and low dissipation factor (0.1%). Surface mountable in an 0805 (2012 metric) case code, with tin contacts and a ceramic construction. Operates across a wide temperature range of -55°C to +125°C, supplied on a 7" reel.
Package0805
Voltage50V
Capacitance15pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0805C150J5GACTU technical specifications.
General
Capacitance
15pF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Contact Material
Tin
Depth
1.25mm
Dielectric
C0G
Dissipation Factor
0.1%
Height
0.78mm
Lead Free
Lead Free
Lead Pitch
0.75mm
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
10%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
Kemet C0805C150J5GACTU Datasheet
Download the complete datasheet for Kemet C0805C150J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

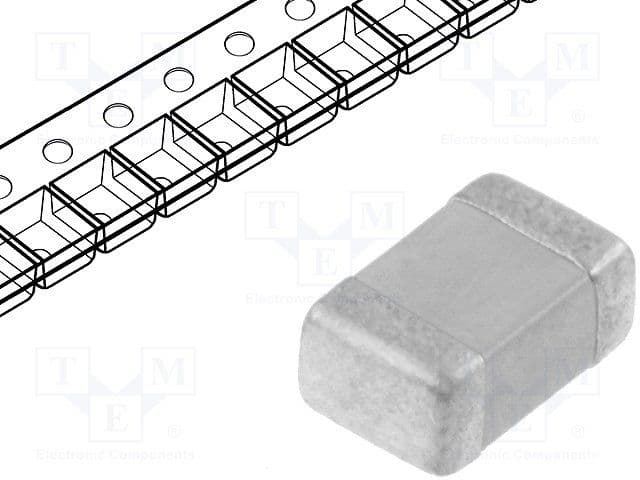

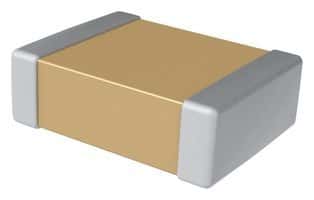

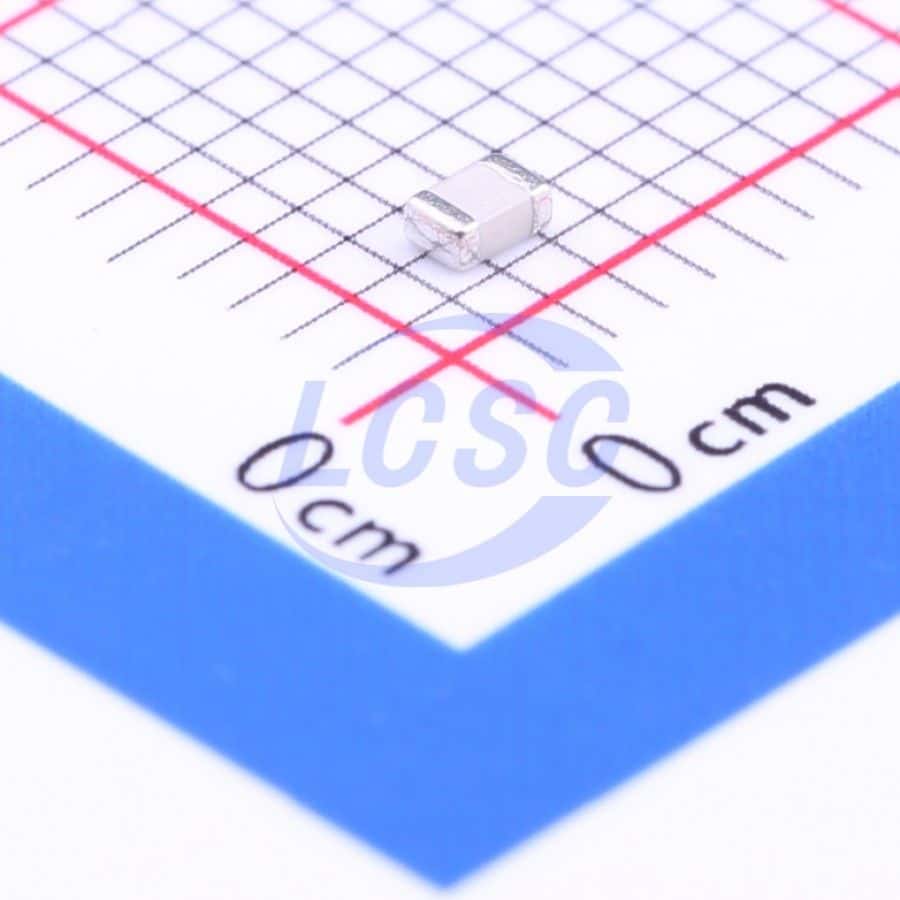

Product Images
