Surface mount ceramic capacitor with 0.22µF capacitance and 50V DC rating. Features X7R dielectric, ±10% tolerance, and an 0805 (2012 metric) case size. Operates across a temperature range of -55°C to +125°C with a dissipation factor of 2.5%. Packaged on a 7" reel for automated assembly.
Package0805
Voltage50V
Capacitance220nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0805C224K5RACTU technical specifications.
General
| Capacitance | 220nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2.5% |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Lead Pitch | 0.75mm |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Comm X7R |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0805C224K5RACTU Datasheet
Download the complete datasheet for Kemet C0805C224K5RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

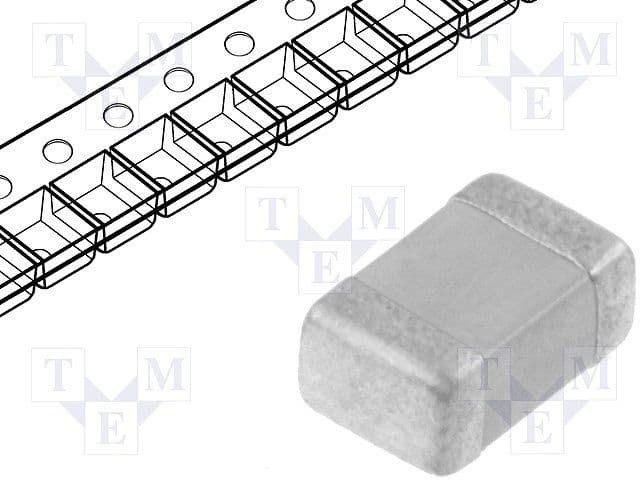

Product Images
