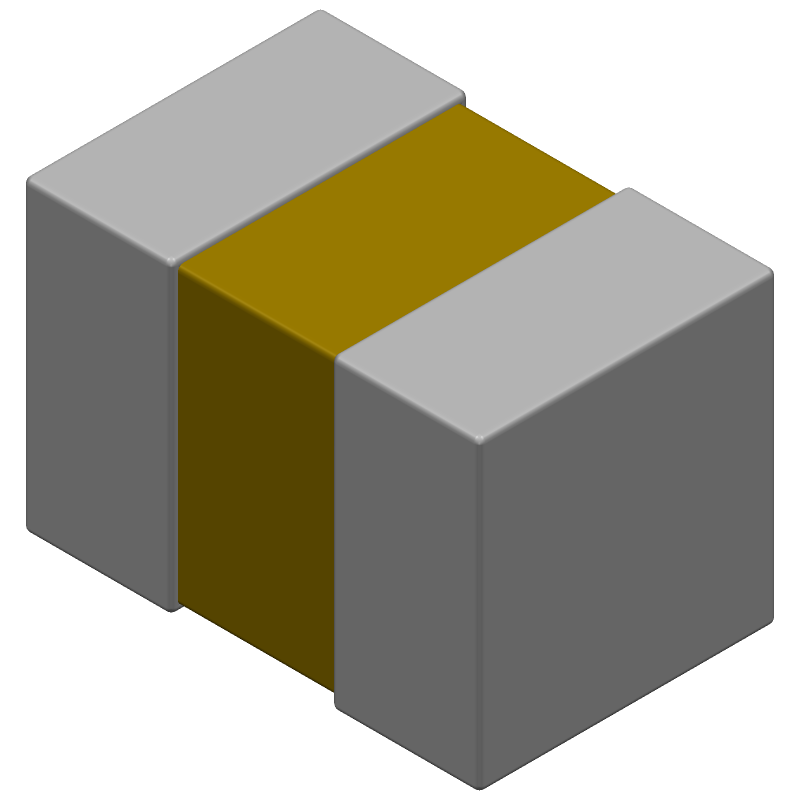

Multilayer ceramic capacitor with 470pF capacitance and 200V DC rating. Features C0G dielectric for stable performance across temperature, with a 5% tolerance. Surface mountable in an 0805 (2012 metric) case code, this component offers extreme low ESR and operates from -55°C to 125°C. Packaged on tape and reel, it is RoHS compliant.
Package0805
Capacitance470pF
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0805C471J2GACTU technical specifications.
General
Capacitance
470pF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
C0G
Dielectric Material
Ceramic
Dissipation Factor
0.1%
Height
0.78mm
Lead Free
Lead Free
Lead Pitch
0.75mm
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
5%
Voltage Rating
200V
DC Rated Voltage
200V
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
Kemet C0805C471J2GACTU Datasheet
Download the complete datasheet for Kemet C0805C471J2GACTU to view detailed technical specifications.
