Multilayer Ceramic Capacitor (MLCC) with 0.47µF capacitance and 16V voltage rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. This 0805 (2012 metric) surface mount component offers 10% tolerance and a 5% dissipation factor. Packaged in tape and reel for automated assembly.
Package0805
Voltage16V
Storage0.9mm
Capacitance470nF
Quick Jump:
Technical Specifications
Kemet C0805C474K4RACTU technical specifications.
General
Capacitance
470nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
5%
Height
0.9mm
Lead Pitch
0.75mm
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SMD Comm X7R
Size
0.9mm
Termination
SMD/SMT
Thickness
0.039inch
Tolerance
10%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Kemet C0805C474K4RACTU Datasheet
Download the complete datasheet for Kemet C0805C474K4RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

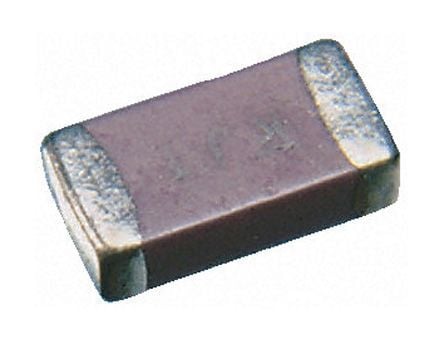

Product Images
