Multilayer ceramic capacitor with 680pF capacitance and 50V voltage rating. Features C0G dielectric for stable performance across temperature, a 5% tolerance, and an 0805 SMD package. Designed for surface mount applications with a maximum operating temperature of 125°C and extreme low ESR. RoHS compliant and constructed from ceramic material.
Package0805
Voltage50V
Capacitance680pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0805C681J5GACTU technical specifications.
General
| Capacitance | 680pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Dissipation Factor | 0.1% |
| Height | 0.78mm |
| Lead Free | Lead Free |
| Lead Pitch | 0.75mm |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 5% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0805C681J5GACTU Datasheet
Download the complete datasheet for Kemet C0805C681J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

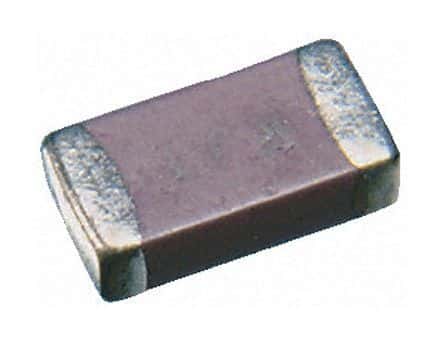

Product Images
