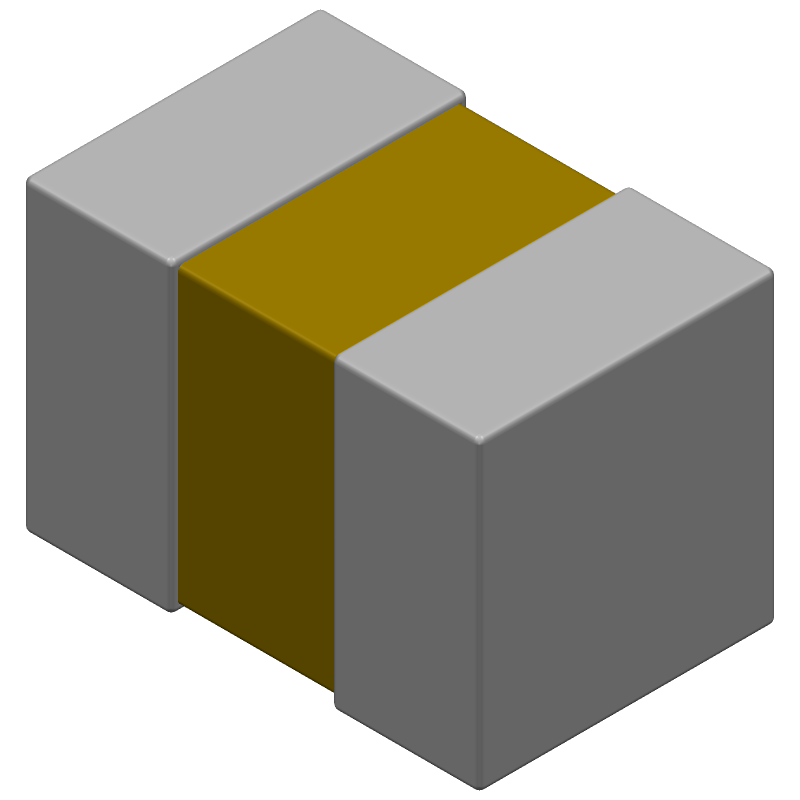

Multilayer ceramic capacitor with 10nF capacitance and 5% tolerance, featuring an X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. This surface mount component is housed in an 0805 (2012 metric) case, measuring 2.0mm x 1.25mm x 0.89mm (length x width x height). Rated for 50V DC, it is supplied on tape and reel, compliant with RoHS standards, and meets AEC-Q200 automotive qualifications.
Package0805
Capacitance10nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0805S103J5RACTU technical specifications.
General
| Capacitance | 10nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 0.049inch |
| Length | 0.079inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FE-CAP |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
