Surface mount multilayer ceramic capacitor with 1nF capacitance and 10% tolerance. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. Rated for 2kV DC, this component is housed in a 1206 case code (3.2mm x 1.6mm) and is RoHS compliant. Dissipation factor is 2.5%.
Package1206
Voltage2kV
Capacitance1nF
Voltage Rating2kV
Quick Jump:
Technical Specifications
Kemet C1206C102KGRACTU technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2.5% |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.069inch |
| Tolerance | 10% |
| Voltage | 2kV |
| Voltage Rating | 2kV |
| DC Rated Voltage | 2kV |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1206C102KGRACTU Datasheet
Download the complete datasheet for Kemet C1206C102KGRACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

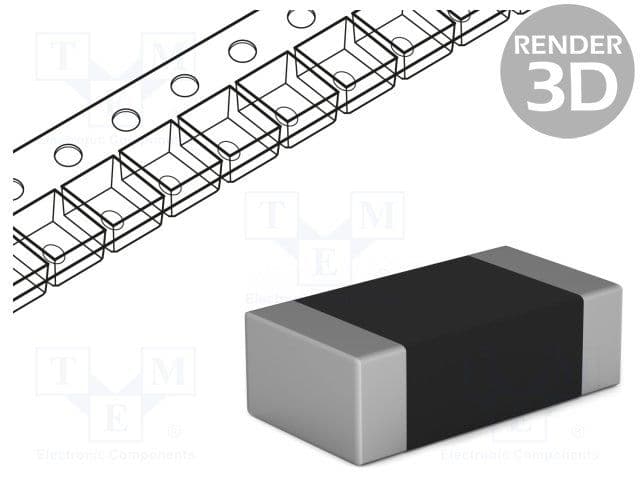

Product Images
