Multilayer Ceramic Capacitor (MLCC) with 100nF capacitance and 50V DC rated voltage. Features Z5U dielectric with a 20% tolerance, operating from 10°C to 85°C. Surface mountable in a 1206 case code (3.2mm x 1.6mm x 0.78mm), supplied on tape and reel. RoHS compliant and lead-free.
Package1206
Capacitance100nF
Voltage Rating50V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Kemet C1206C104M5UACTU technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | Z5U |
| Height | 0.78mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 10°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1206C104M5UACTU Datasheet
Download the complete datasheet for Kemet C1206C104M5UACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

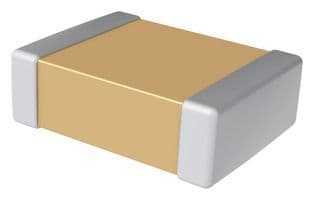

Product Images
