Multilayer Ceramic Capacitor (MLCC) with 1µF capacitance and 25V voltage rating. Features Y5V dielectric with a wide tolerance of -20% to 80%. This surface mount component is housed in a 1206 (3216 metric) case code, measuring 3.2mm in length, 1.6mm in width, and 1.6mm in height. Operating temperature range is -30°C to 85°C, with a dissipation factor of 7%. Lead-free and RoHS compliant, packaged in tape and reel.
Package1206
Voltage25V
Capacitance1uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kemet C1206C105Z3VACTU technical specifications.
General
Capacitance
1uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Contact Material
Tin
Depth
1.6mm
Dielectric
Y5V
Dielectric Material
Ceramic
Dissipation Factor
7%
Height
1.6mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.055inch
Tolerance
80%
Voltage
25V
Voltage Rating
25V
Voltage Rating (AC)
25V
DC Rated Voltage
25V
Weight
0.000571oz
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Kemet C1206C105Z3VACTU Datasheet
Download the complete datasheet for Kemet C1206C105Z3VACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

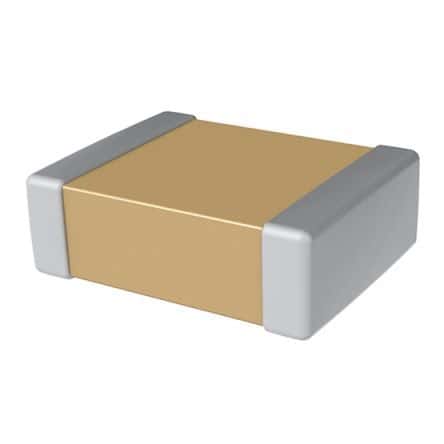

Product Images
