Surface mount ceramic capacitor with 22pF capacitance and 50V DC rating. Features C0G dielectric for excellent stability, ±5% tolerance, and a dissipation factor of 0.1%. Encased in a 1206 (3216 metric) case code with tin termination, operating from -55°C to +125°C. RoHS compliant and lead-free.
Package1206
Capacitance22pF
Voltage Rating50V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Kemet C1206C220J5GACTU technical specifications.
General
| Capacitance | 22pF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Contact Material | Tin |
| Depth | 1.6mm |
| Dielectric | C0G |
| Dissipation Factor | 0.1% |
| Height | 0.78mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |

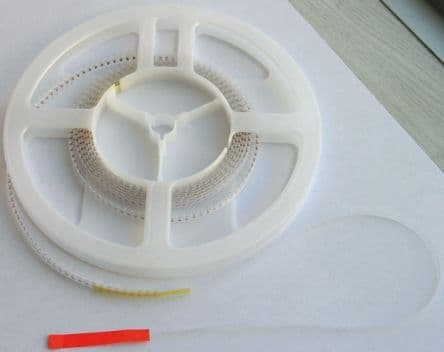

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1206C220J5GACTU Datasheet
Download the complete datasheet for Kemet C1206C220J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
