Kemet
C1206X102KCRACTU

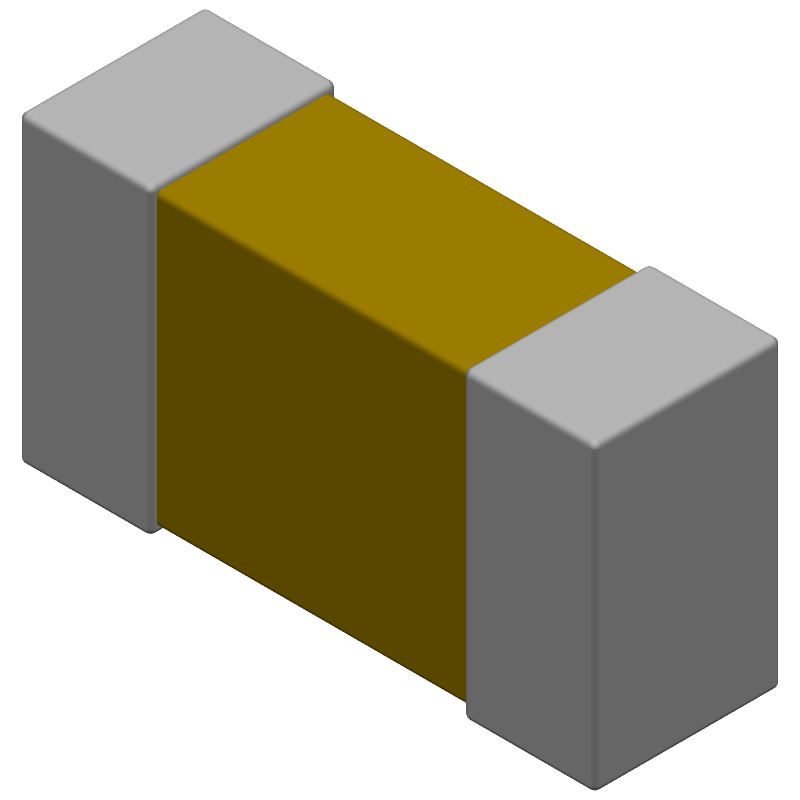

Cap Ceramic 0.001uF 500V X7R 10% Pad SMD 1206 Flexible Termination 125°C Low ESR Automotive T/R
Package1206
Capacitance1nF
Voltage Rating500V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C1206X102KCRACTU technical specifications.
General
Capacitance
1nF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Dielectric
X7R
Dielectric Material
Ceramic
Features
Soft Termination
Height
1.2mm
Length
3.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2500
Packaging
Cut Tape
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SMD Comm X7R HV Flex
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
500V
DC Rated Voltage
500V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kemet C1206X102KCRACTU Datasheet
Download the complete datasheet for Kemet C1206X102KCRACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
