Multilayer ceramic capacitor with 6.8nF capacitance and 50V DC rating. Features C0G dielectric for stable performance across temperature ranges from -55°C to 125°C. This 1210 (3225 metric) surface mount component offers 5% tolerance and a low dissipation factor of 0.1%. Packaged on tape and reel, it is lead-free and RoHS compliant.
Package1210
Capacitance6.8nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C1210C682J5GACTU technical specifications.
General
| Capacitance | 6.8nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Depth | 2.5mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Dissipation Factor | 0.1% |
| Height | 0.78mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | C1210C |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1210C682J5GACTU Datasheet
Download the complete datasheet for Kemet C1210C682J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

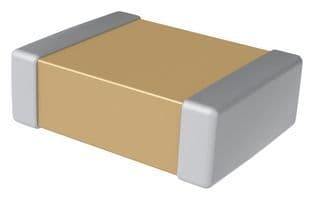

Product Images
