Technical Specifications

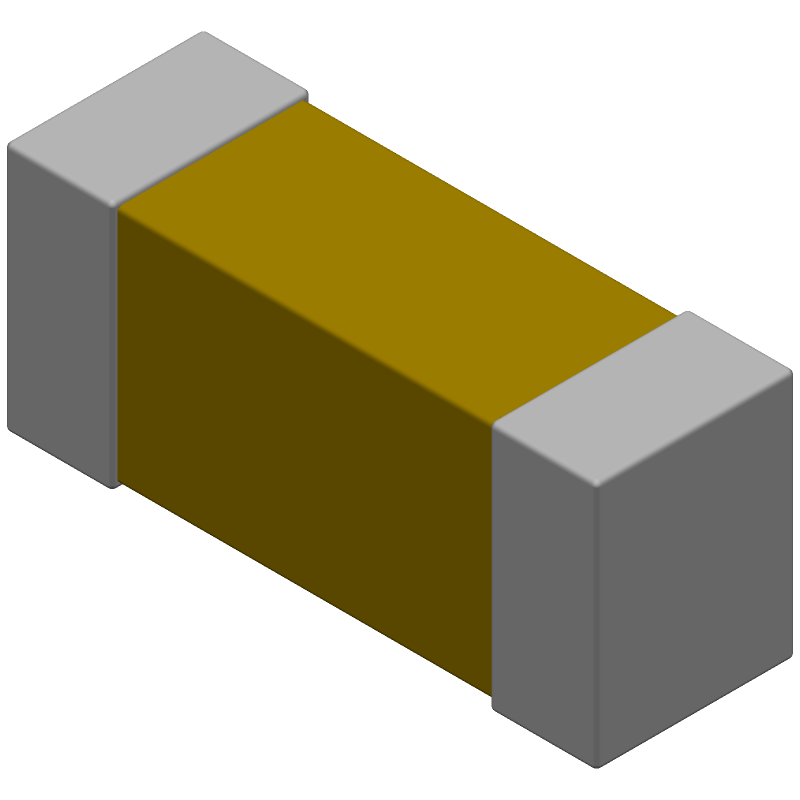

Kemet C1808C103KBRACTU technical specifications.
General
| Capacitance | 10nF |
| Case Code (Imperial) | 1808 |
| Case Code (Metric) | 4520 |
| Package/Case | 1808 |
| Contact Plating | Tin, Matte |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 1.6mm |
| Length | 4.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | C1808C |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 630V |
| DC Rated Voltage | 630V |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1808C103KBRACTU Datasheet
Download the complete datasheet for Kemet C1808C103KBRACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
