Radial multilayer ceramic capacitor with 10nF capacitance and 50V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. 2.54mm lead pitch and 0.51mm lead diameter facilitate through-hole PCB mounting. Offered in bulk packaging with a 20% tolerance.
PackageRadial
Voltage50V
Capacitance10nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C315C103K5R5TA technical specifications.
General
Capacitance
10nF
Package/Case
Radial
Construction
RADIAL
Depth
2.54mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
2.5%
Height
2.54mm
Lead Diameter
0.51mm
Lead Free
Lead Free
Lead Length
7mm
Lead Pitch
2.54mm
Lead/Base Style
Straight
Length
3.81mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GoldMax 300 Comm X7R
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
3.81mm
Compliance
RoHS
Compliant
Datasheet
Kemet C315C103K5R5TA Datasheet
Download the complete datasheet for Kemet C315C103K5R5TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

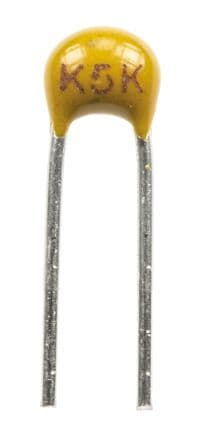

Product Images
