Multilayer Ceramic Capacitor (MLCC) with 33pF capacitance and 250V DC rated voltage. Features C0G dielectric for stable performance across temperature, a 5% tolerance, and a 0805 (2012 metric) surface mount case. Operates from -55°C to 125°C with low ESR and is RoHS compliant. Packaged in tape and reel for automated assembly.
Package0805
Voltage250V
Capacitance33pF
Voltage Rating250V
Quick Jump:
Technical Specifications
Kemet CBR08C330JAGAC technical specifications.
General
| Capacitance | 33pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 0.85mm |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CBR |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.000194oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet CBR08C330JAGAC Datasheet
Download the complete datasheet for Kemet CBR08C330JAGAC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

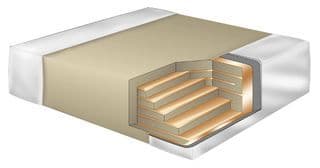

Product Images
