Radial multilayer ceramic capacitor with 470pF capacitance and 200V DC rating. Features X7R dielectric material, 10% tolerance, and a maximum operating temperature of 125°C. Molded construction with formed radial leads on a 5mm pitch, suitable for through-hole mounting. Dissipation factor is 2.5% with a lead diameter of 0.635mm.
PackageMolded
Capacitance470pF
Voltage Rating200V
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet CK05BX471K technical specifications.
General
| Capacitance | 470pF |
| Package/Case | Molded |
| Construction | RADIAL |
| Depth | 2.29mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2.5% |
| Features | Military |
| Height | 4.83mm |
| Height - Seated (Max) | 0.2inch |
| Lead Diameter | 0.635mm |
| Lead Free | Contains Lead |
| Lead Pitch | 5mm |
| Lead/Base Style | Formed Leads |
| Length | 4.83mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | Military, MIL-C-11015, CK05 |
| Termination | Radial |
| Thickness | 2.29mm |
| Tolerance | 10% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Width | 0.09inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Kemet CK05BX471K Datasheet
Download the complete datasheet for Kemet CK05BX471K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

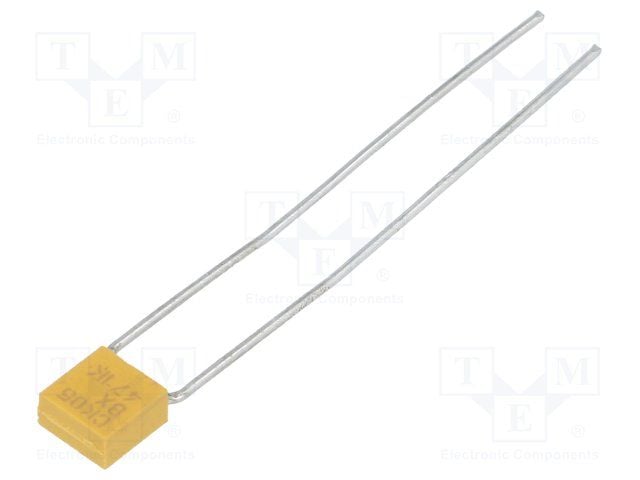

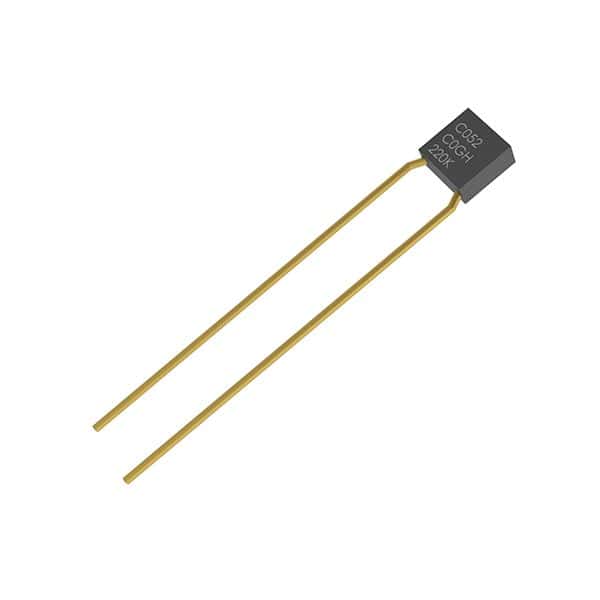

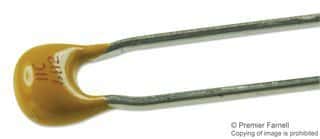

Product Images
