Radial film capacitor with 10nF capacitance and 5% tolerance, designed for high-frequency applications. Features a polypropylene dielectric and a 1kV DC voltage rating, with an AC rating of 375V. Operating temperature range is -55°C to 105°C. Through-hole mounting with a 15mm lead pitch and 0.8mm lead diameter. Dimensions are 18mm (length/width) x 5.5mm (depth/height).
PackageRadial
Voltage1kV
Capacitance10nF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Kemet PHE450PB5100JR06 technical specifications.
General
| Application(s) | HIGH FREQUENCY |
| Capacitance | 10nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 5.5mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 5.5mm |
| Height - Seated (Max) | 0.413inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 15mm |
| Length | 18mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PHE450 |
| Termination | Radial |
| Tolerance | 5% |
| Voltage | 1kV |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 375V |
| DC Rated Voltage | 1kV |
| Width | 18mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet PHE450PB5100JR06 Datasheet
Download the complete datasheet for Kemet PHE450PB5100JR06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

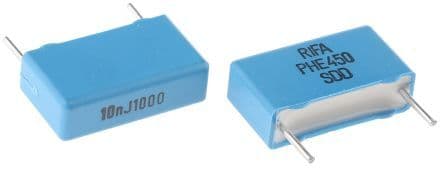

Product Images
