Technical Specifications
Kemet R76UI11004030J technical specifications.
General
| Capacitance | 1nF |
| Package/Case | Radial |
| Depth | 5mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height - Seated (Max) | 11.0998mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 15mm |
| Length | 18mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Packaging | Bulk |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | R76 |
| Termination | PC Pins |
| Tolerance | 5% |
| Voltage Rating | 2kV |
| Voltage Rating (AC) | 700V |
| DC Rated Voltage | 2kV |
| Width | 5.0038mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet R76UI11004030J Datasheet
Download the complete datasheet for Kemet R76UI11004030J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

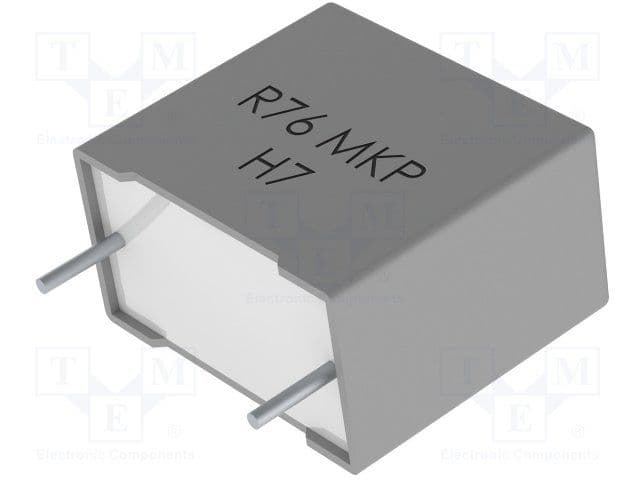

Product Images
