Technical Specifications
Kemet T110A224J035AS technical specifications.
General
| Capacitance | 220nF |
| Package/Case | Metal |
| Diameter | 3.43mm |
| Dissipation Factor | 3% |
| ESR (Equivalent Series Resistance) | 17R |
| Lead Diameter | 0.51mm |
| Leakage Current | 500nA |
| Length | 6.35mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Package Quantity | 3500 |
| RoHS Compliant | No |
| Series | T110 |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Not Compliant |
Datasheet
Kemet T110A224J035AS Datasheet
Download the complete datasheet for Kemet T110A224J035AS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

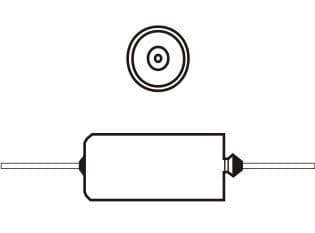

Product Images
