Solid tantalum capacitor with 1uF capacitance and 20V DC rated voltage. Features 10% tolerance, 9R ESR, and 91mA ripple current. Surface mountable in a 3216 metric case code (1206 imperial), measuring 3.2mm x 1.6mm x 1.6mm. Operates from -55°C to 125°C, with 500nA leakage current. Lead-free and RoHS compliant, supplied on tape and reel.
Package1206
Voltage20V
Storage1.6mm
Capacitance1uF
Quick Jump:
Technical Specifications
Kemet T491A105K020AT technical specifications.
General
Capacitance
1uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
4%
ESR (Equivalent Series Resistance)
9R
Features
General Purpose
Height
1.6mm
Lead Free
Lead Free
Lead Pitch
1.2mm
Leakage Current
500nA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
91mA
RoHS Compliant
Yes
Series
T491
Size
1.6mm
Termination
SMD/SMT
Tolerance
10%
Voltage
20V
Voltage Rating
20V
DC Rated Voltage
20V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491A105K020AT Datasheet
Download the complete datasheet for Kemet T491A105K020AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

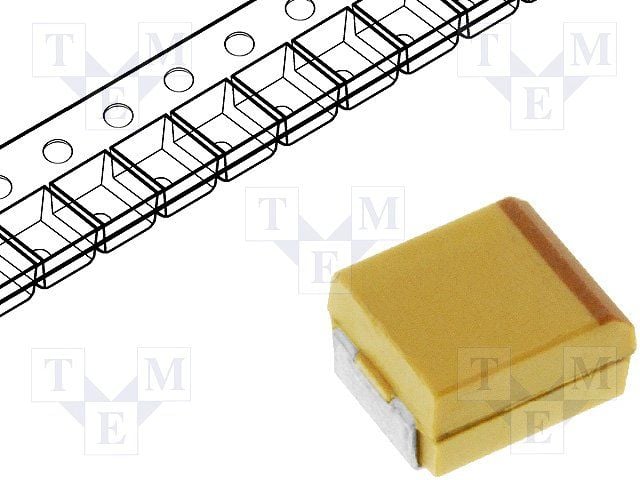

Product Images
