Polarized tantalum capacitor with 3.3µF capacitance and 16V DC rating. Features 10% tolerance, 1206 surface mount case code, and a maximum operating temperature of 125°C. This general-purpose component offers low leakage current of 500nA and a ripple current capability of 122mA. Constructed with solid tantalum dielectric, it provides a failure rate of 0.001% and is RoHS compliant.
Package1206
Voltage16V
Capacitance3.3uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kemet T491A335K016AT technical specifications.
General
Capacitance
3.3uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
5R
Failure Rate
0.001%
Features
General Purpose
Height
1.6mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Lead Pitch
1.2mm
Leakage Current
500nA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
122mA
RoHS Compliant
Yes
Series
T491
Termination
SMD/SMT
Tolerance
10%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491A335K016AT Datasheet
Download the complete datasheet for Kemet T491A335K016AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

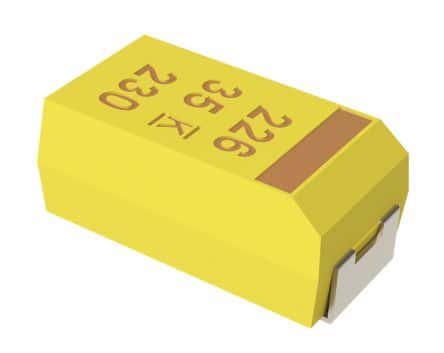

Product Images
