Surface mount tantalum capacitor with 2.2µF capacitance and 25V DC rated voltage. Features 10% tolerance, 6% dissipation factor, and 4.5Ω ESR. Operating temperature range from -55°C to 125°C. Housed in a 1411 (3528 metric) case code with tape and reel packaging. RoHS compliant and lead-free.
Package1411
Voltage25V
Storage1.9mm
Capacitance2.2uF
Quick Jump:
Technical Specifications
Kemet T491B225K025AT technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1411
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
4.5R
Features
General Purpose
Height
1.9mm
Lead Free
Lead Free
Leakage Current
600nA
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T491
Size
1.9mm
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Weight
0.002293oz
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491B225K025AT Datasheet
Download the complete datasheet for Kemet T491B225K025AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

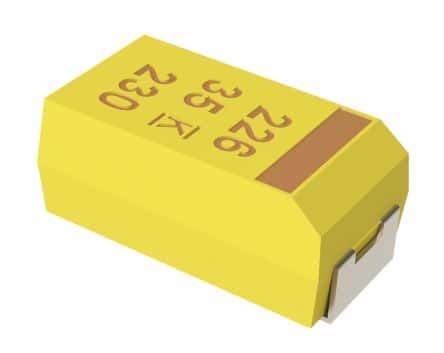

Product Images
