Polarized tantalum capacitor, 47µF capacitance, 20V DC rated voltage, and 10% tolerance. Features a 2312 imperial case code (6032 metric) with a molded, flat construction for surface mount applications. Operating temperature range from -55°C to 125°C, with 900mΩ ESR and 9.4µA leakage current. Lead-free and RoHS compliant.
PackageMolded
Capacitance47uF
Voltage Rating20V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T491C476K020AT technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 900mR |
| Features | General Purpose |
| Height | 2.8mm |
| Lead Free | Lead Free |
| Leakage Current | 9.4uA |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 20 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | T491 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T491C476K020AT Datasheet
Download the complete datasheet for Kemet T491C476K020AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

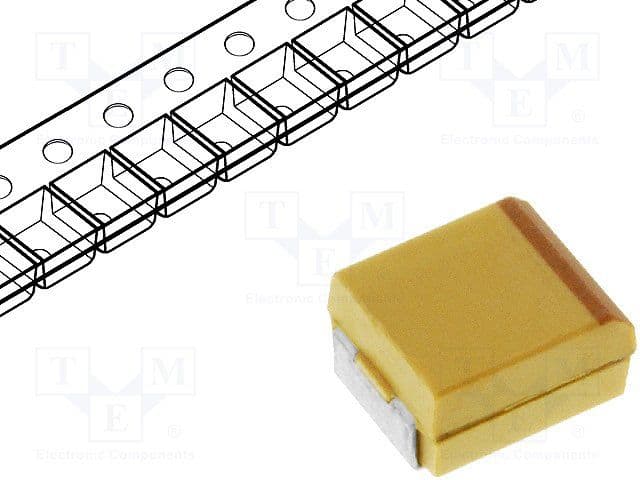

Product Images
