Solid Tantalum Capacitor, 100µF capacitance, 16V DC rated voltage, and 10% tolerance. Features a 7343-31 metric case code (2917 imperial), 7.3mm length, 4.3mm width, and 2.8mm height. Offers 700mΩ ESR, 16µA leakage current, and 463mA ripple current. Operates from -55°C to 125°C, with lead-free and RoHS compliance. Surface mountable in tape and reel packaging.
PackageMolded
Voltage16V
Storage2.8mm
Capacitance100uF
Quick Jump:
Technical Specifications
Kemet T491D107K016AT technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
Molded
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
700mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Lead Pitch
3.6mm
Leakage Current
16uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
463mA
RoHS Compliant
Yes
Series
T491
Size
2.8mm
Termination
SMD/SMT
Tolerance
10%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491D107K016AT Datasheet
Download the complete datasheet for Kemet T491D107K016AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

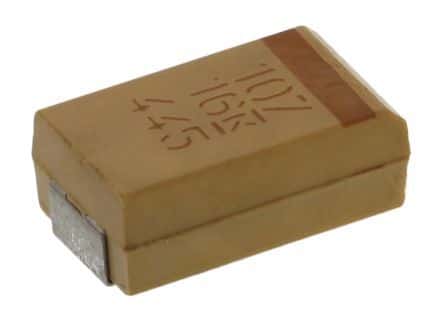

Product Images
