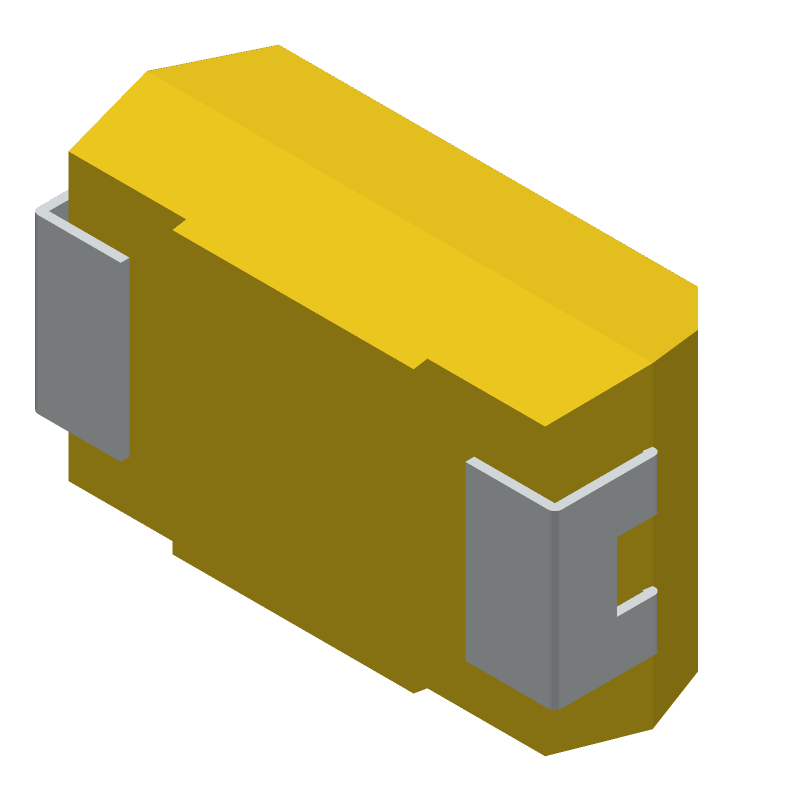

68µF polarized tantalum capacitor for general-purpose applications. Features a 6.3V DC rating, 10% tolerance, and a 2917 (7343 metric) surface mount case code. Operating temperature range from -55°C to 125°C, with 800mΩ ESR and 4.1µA leakage current. Lead-free and RoHS compliant construction.
Package2917
Voltage6.3V
Capacitance68uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet T491D686K006AT technical specifications.
General
Capacitance
68uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
800mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Lead Pitch
3.6mm
Leakage Current
4.1uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T491
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491D686K006AT Datasheet
Download the complete datasheet for Kemet T491D686K006AT to view detailed technical specifications.
