Solid Tantalum Capacitor, 100µF capacitance, 25V DC rated voltage, and 10% tolerance. Features 0.3 Ohm ESR and 8% dissipation factor. Operating temperature range from -55°C to 125°C. Surface mountable in a 7343 metric case code (2917 imperial), measuring 7.3mm L x 4.3mm W x 4.3mm H. Packaged in Tape and Reel.
Package2917
Capacitance100uF
Resistance0.3R
Voltage Rating25V
Quick Jump:
Technical Specifications
Kemet T491X107K025ZT technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 300mR |
| Features | General Purpose |
| Height | 4.3mm |
| Leakage Current | 25uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 0.3R |
| RoHS Compliant | Yes |
| Series | T491 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T491X107K025ZT Datasheet
Download the complete datasheet for Kemet T491X107K025ZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

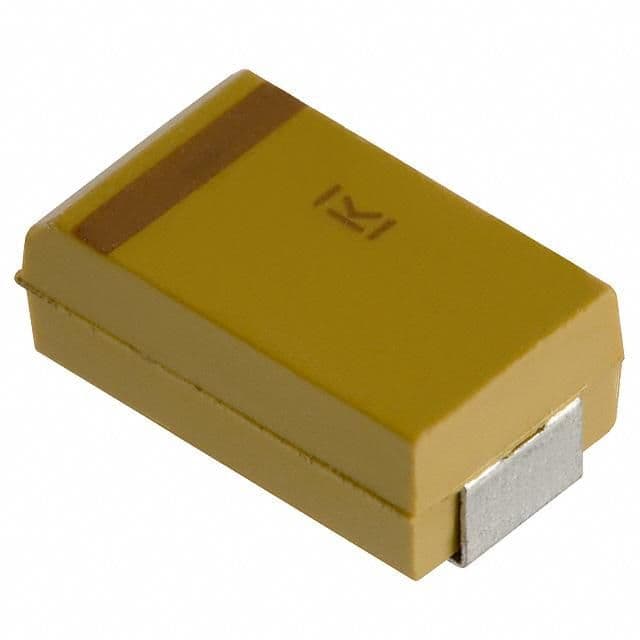

Product Images
