Polarized tantalum capacitor, 47µF capacitance, 10V DC rated voltage, and 10% tolerance. Features a 300mΩ ESR, 606mA ripple current, and 4.7µA leakage current. Operating temperature range from -55°C to 125°C. Surface mount, 2413 case code, with molded construction and lead-free termination.
PackageMolded
Voltage6V
Storage2.5mm
Capacitance47uF
Quick Jump:
Technical Specifications
Kemet T494C476K010AT technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
300mR
Features
General Purpose
Height
2.5mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Lead Pitch
2.9mm
Leakage Current
4.7uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
0.3R
Ripple Current
606mA
RoHS Compliant
Yes
Series
T494
Size
2.5mm
Termination
SMD/SMT
Tolerance
10%
Voltage
6V
Voltage Rating
10V
DC Rated Voltage
10V
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Kemet T494C476K010AT Datasheet
Download the complete datasheet for Kemet T494C476K010AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

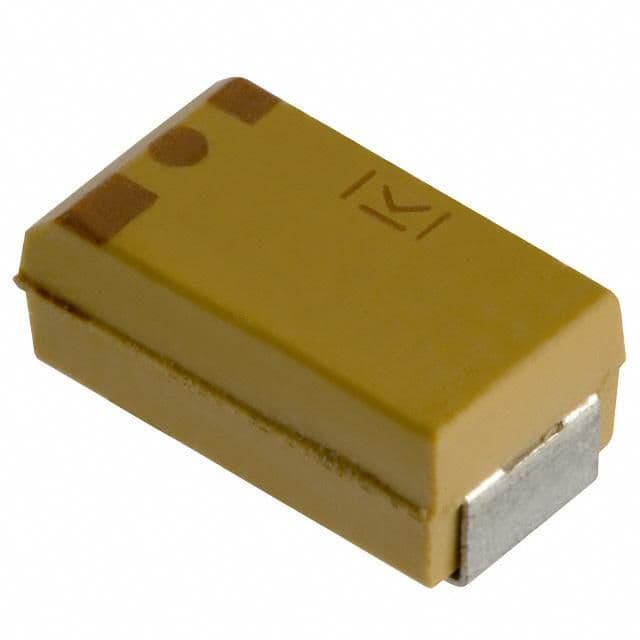

Product Images
