22µF, 25V polarized tantalum capacitor with 10% tolerance, suitable for general-purpose applications. Features a 2917 (7343 metric) surface mount case code, 300mΩ ESR, and a dissipation factor of 6%. Operating temperature range is -55°C to 125°C, with a leakage current of 5.5µA and ripple current of 707mA. This RoHS compliant component is supplied on tape and reel.
Package2917
Voltage25V
Capacitance22uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kemet T494D226K025AT technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 300mR |
| Failure Rate | 0.001% |
| Features | General Purpose |
| Height | 2.8mm |
| Height - Seated (Max) | 0.122inch |
| Leakage Current | 5.5uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 20 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Ripple Current | 707mA |
| RoHS Compliant | Yes |
| Series | T494 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T494D226K025AT Datasheet
Download the complete datasheet for Kemet T494D226K025AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

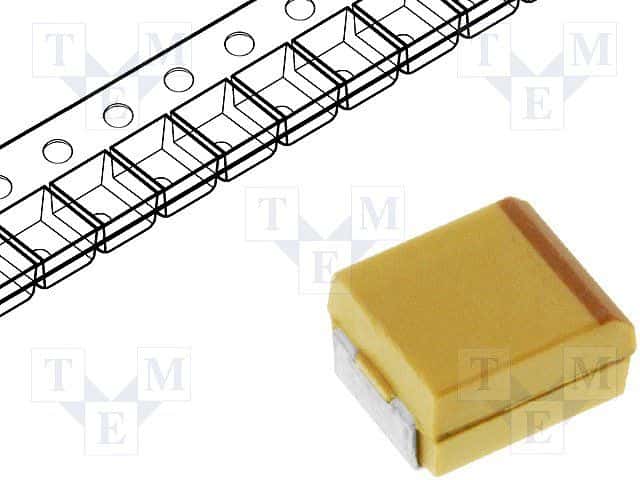

Product Images
