Solid Tantalum Capacitor, 10µF capacitance, 16V DC rated voltage, 10% tolerance. Features 450mΩ ESR and 6% dissipation factor. Surface mountable in a 6032 metric case (2312 imperial), measuring 6mm x 3.2mm x 3.2mm. Operating temperature range from -55°C to 125°C. Packaged in tape and reel.
PackageMolded
Capacitance10uF
Resistance0.45R
Voltage Rating16V
Quick Jump:
Technical Specifications
Kemet T495C106K016ZTE450 technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 3.2mm |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 450mR |
| Features | General Purpose |
| Height | 3.2mm |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Resistance | 0.45R |
| RoHS Compliant | Yes |
| Series | T495 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.005291oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495C106K016ZTE450 Datasheet
Download the complete datasheet for Kemet T495C106K016ZTE450 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

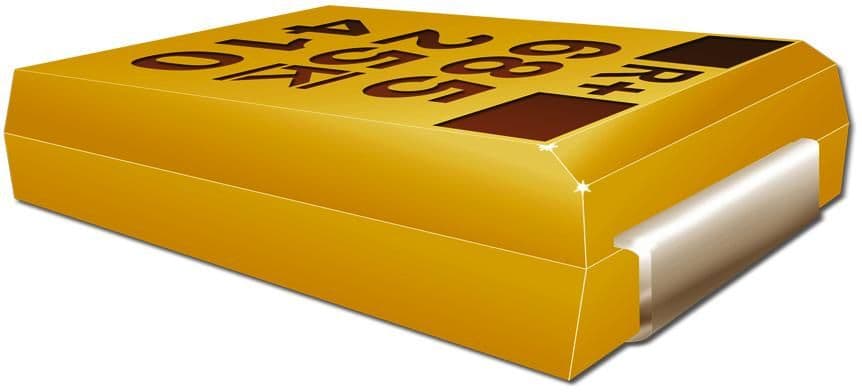

Product Images
