Surface mount tantalum capacitor, 100µF capacitance, 10V DC rated voltage, and 10% tolerance. Features a 250mΩ ESR and 8% dissipation factor, operating from -55°C to 125°C. Molded construction with a 6032 metric case code (2413 imperial), measuring 6mm in length, 3.2mm in depth, and 2.5mm in height. RoHS compliant and supplied on tape and reel.
PackageMolded
Capacitance100uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T495C107K010ATE250 technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2413 |
| Case Code (Metric) | 6032 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 3.2mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 250mR |
| Features | General Purpose |
| Height | 2.5mm |
| Height - Seated (Max) | 0.11inch |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | T495 |
| Tolerance | 10% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495C107K010ATE250 Datasheet
Download the complete datasheet for Kemet T495C107K010ATE250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

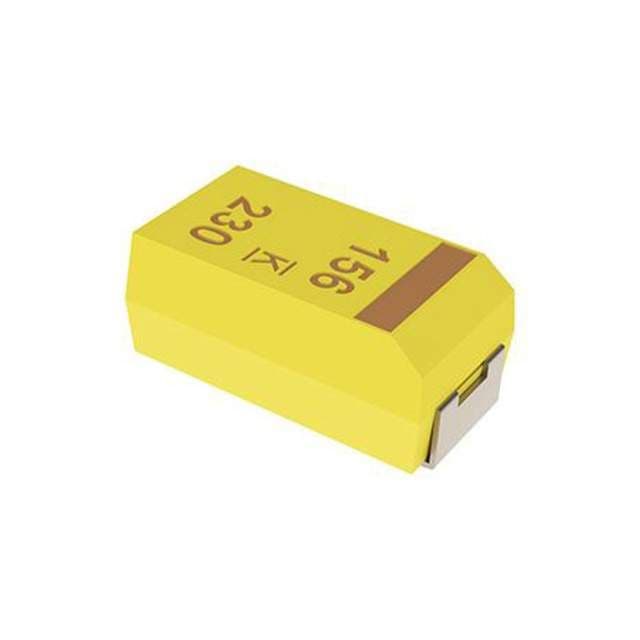

Product Images
