Polarized tantalum capacitor with 100µF capacitance and 10V DC rated voltage. Features a 20% tolerance, 100mΩ ESR, and 490mA ripple current. This surface mount component is housed in a 2917 (7343 metric) case, offering a -55°C to 125°C operating temperature range. Designed for general purpose applications, it is RoHS compliant and packaged in tape and reel.
Package2917
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kemet T495D107K010ATE100 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Leakage Current
10uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
490mA
RoHS Compliant
Yes
Series
T495
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T495D107K010ATE100 Datasheet
Download the complete datasheet for Kemet T495D107K010ATE100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

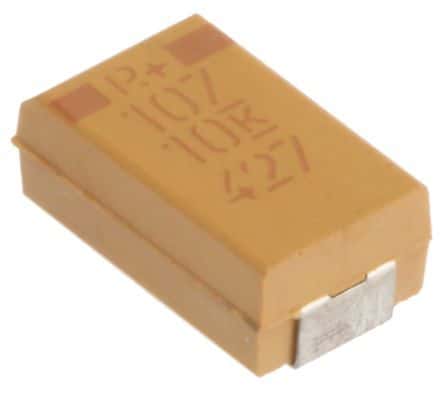

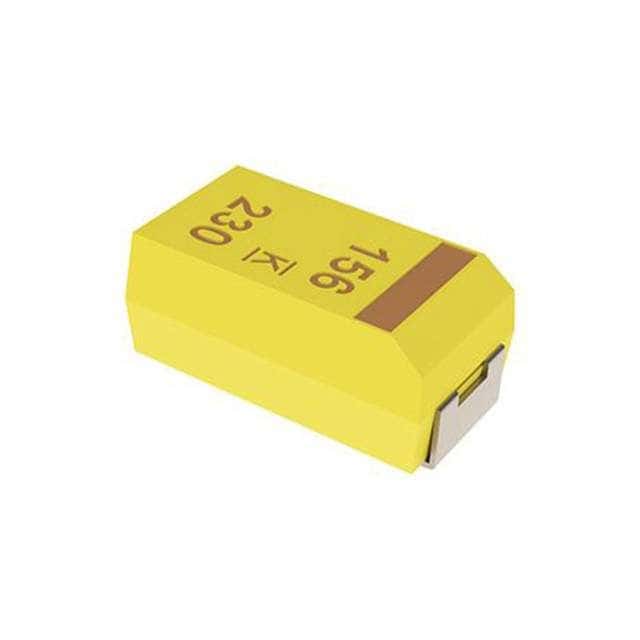

Product Images
