Polarized tantalum capacitor, 100µF capacitance, 16V voltage rating, 10% tolerance. Features a 2917 (7343 metric) surface mount case code, 125mΩ ESR, and 8% dissipation factor. Operating temperature range from -55°C to 125°C. RoHS compliant, general purpose construction.
Package2917
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kemet T495D107K016ATE125 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
125mR
Failure Rate
0.001%
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T495
Termination
SMD/SMT
Tolerance
10%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kemet T495D107K016ATE125 Datasheet
Download the complete datasheet for Kemet T495D107K016ATE125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

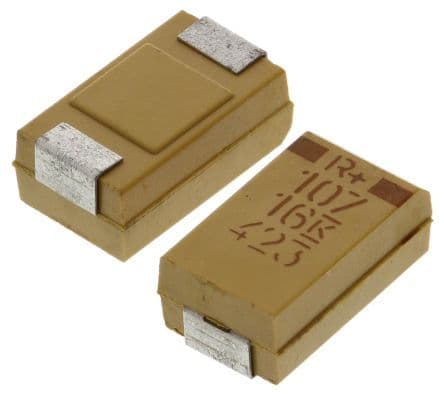

Product Images
