Solid Tantalum Capacitor, 15µF capacitance, 35V DC rated voltage, and 10% tolerance. Features a 7343-31 metric case size (2917 imperial) with dimensions of 7.3mm length, 4.3mm width, and 4.3mm height. Offers a low ESR of 0.26 Ohms and a maximum operating temperature of 125°C. Designed for surface mount applications with inward L terminations, packaged in tape and reel. RoHS compliant and suitable for general purpose use.
Package2917
Capacitance15uF
Resistance0.26R
Voltage Rating35V
Quick Jump:
Technical Specifications
Kemet T495D156K035ZTE260 technical specifications.
General
| Capacitance | 15uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 260mR |
| Features | General Purpose |
| Height | 4.3mm |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Resistance | 0.26R |
| RoHS Compliant | Yes |
| Series | T495 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Weight | 0.023634oz |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495D156K035ZTE260 Datasheet
Download the complete datasheet for Kemet T495D156K035ZTE260 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

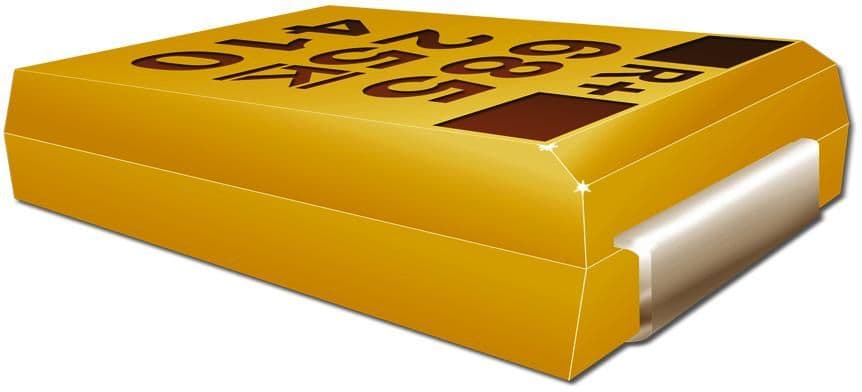

Product Images
