Polarized tantalum capacitor, 220µF capacitance, 10V DC rated voltage, and 10% tolerance. Features a 125mΩ ESR and 8% dissipation factor. Surface mountable in a 2917 (7343 metric) case code, with a maximum operating temperature of 125°C. This general-purpose component is lead-free and RoHS compliant.
Package2917
Voltage10V
Capacitance220uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kemet T495D227K010ATE125 technical specifications.
General
Capacitance
220uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
125mR
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Lead Pitch
3.8mm
Leakage Current
22uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
438mA
RoHS Compliant
Yes
Series
T495
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kemet T495D227K010ATE125 Datasheet
Download the complete datasheet for Kemet T495D227K010ATE125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

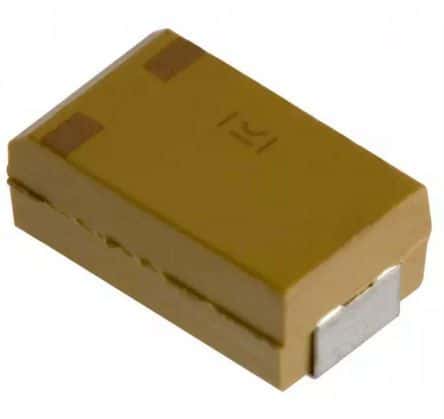

Product Images
