Solid tantalum capacitor, 100µF capacitance, 20V DC rated voltage, 10% tolerance. Features 0.15 Ohm ESR, 8% dissipation factor, and a maximum operating temperature of 125°C. Housed in a 7343 metric / 2917 imperial SMD package with dimensions of 7.3mm (L) x 4.3mm (W) x 4.3mm (H). Designed for surface mount applications with inward lead termination.
Package2917
Capacitance100uF
Resistance0.15R
Voltage Rating20V
Quick Jump:
Technical Specifications
Kemet T495X107K020ZTE150 technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 150mR |
| Features | General Purpose |
| Height | 4.3mm |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Resistance | 0.15R |
| RoHS Compliant | Yes |
| Series | T495 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
| Weight | 0.023634oz |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495X107K020ZTE150 Datasheet
Download the complete datasheet for Kemet T495X107K020ZTE150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

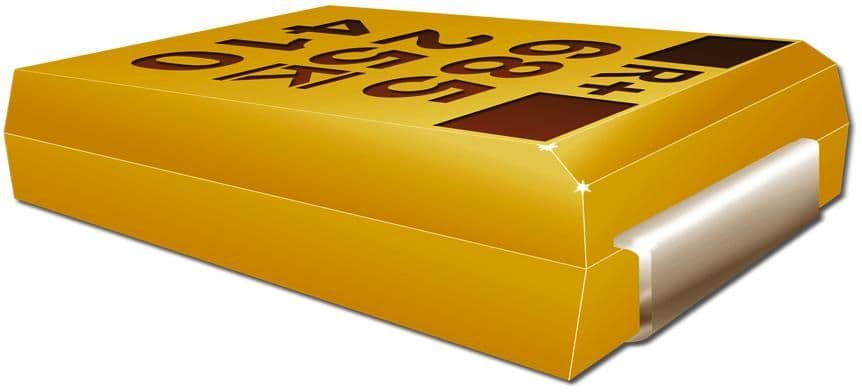

Product Images
