33µF, 35V polarized tantalum capacitor with 10% capacitance tolerance. Features a 260mΩ ESR and operates across a -55°C to 125°C temperature range. Surface mountable in a 2917 (7343 metric) chip package, this general-purpose component is supplied on tape and reel and is RoHS compliant.
Package2917
Capacitance33uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T495X336K035ATE260 technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| ESR (Equivalent Series Resistance) | 260mR |
| Features | General Purpose |
| Height | 4mm |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | T495 |
| Tolerance | 10% |
| Voltage Rating | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495X336K035ATE260 Datasheet
Download the complete datasheet for Kemet T495X336K035ATE260 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

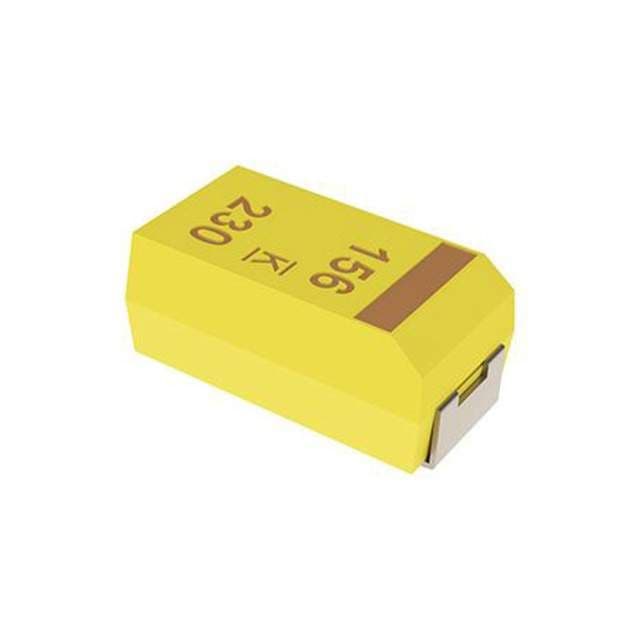

Product Images
